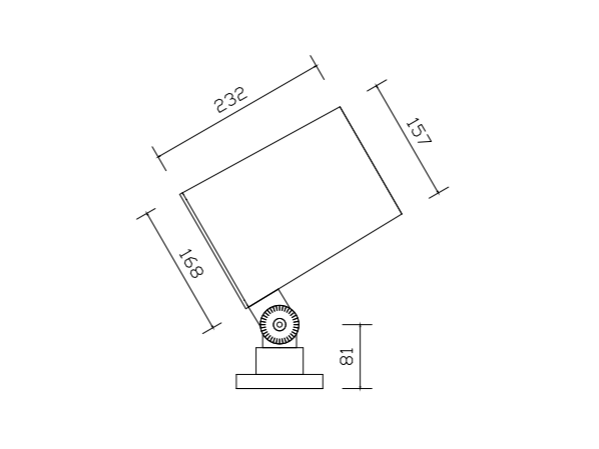

Structural Specifications
| ● |

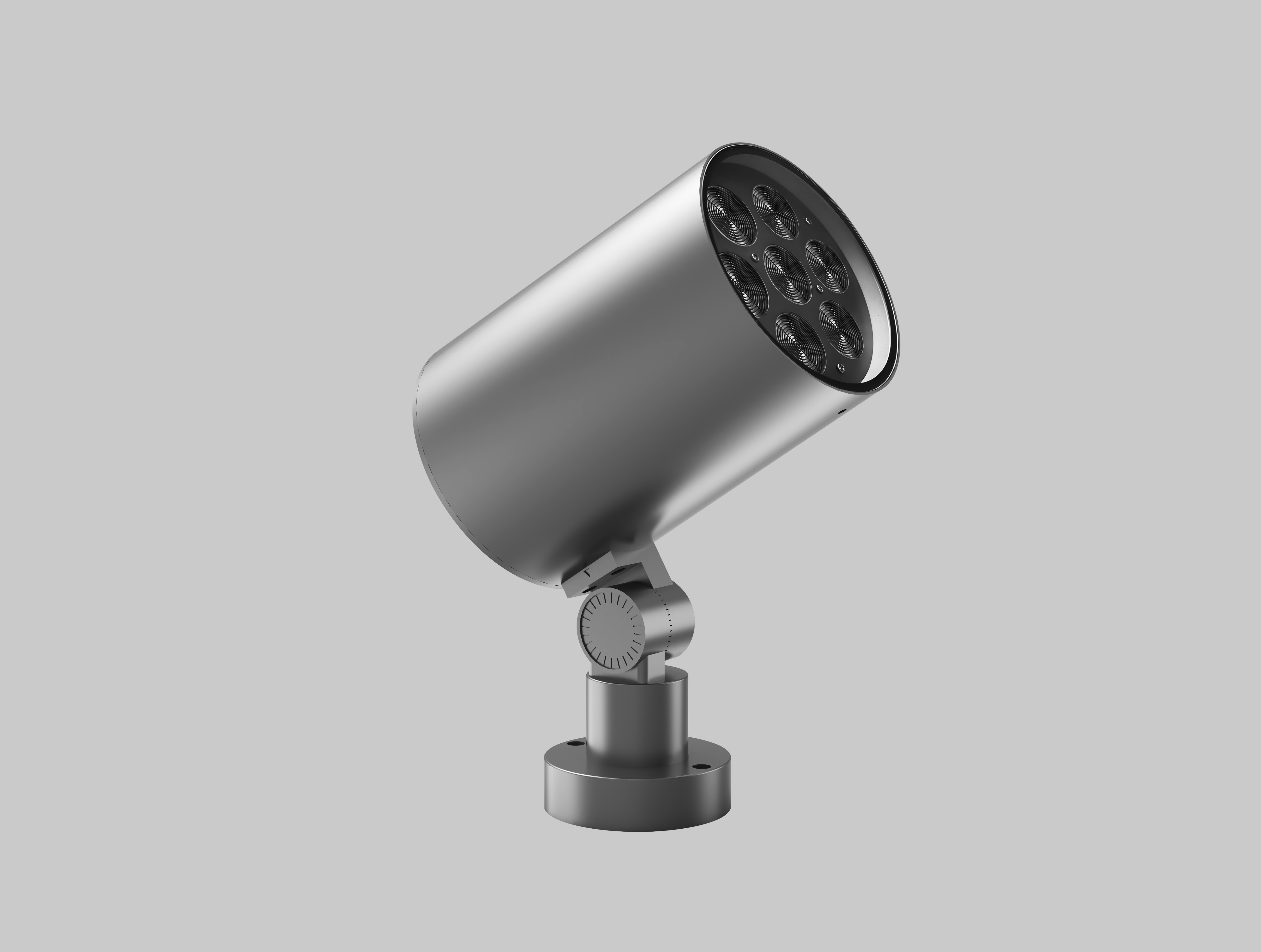

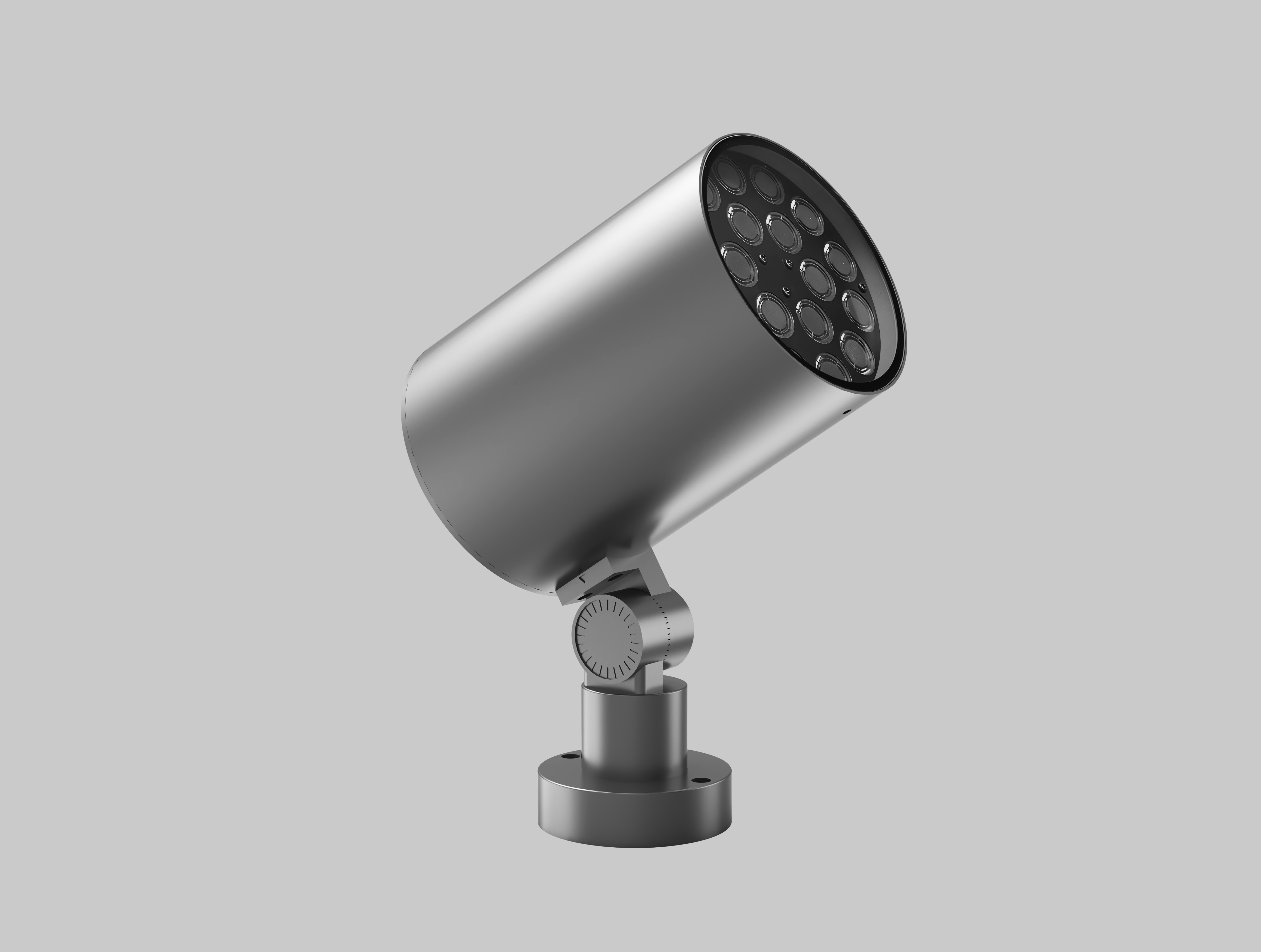

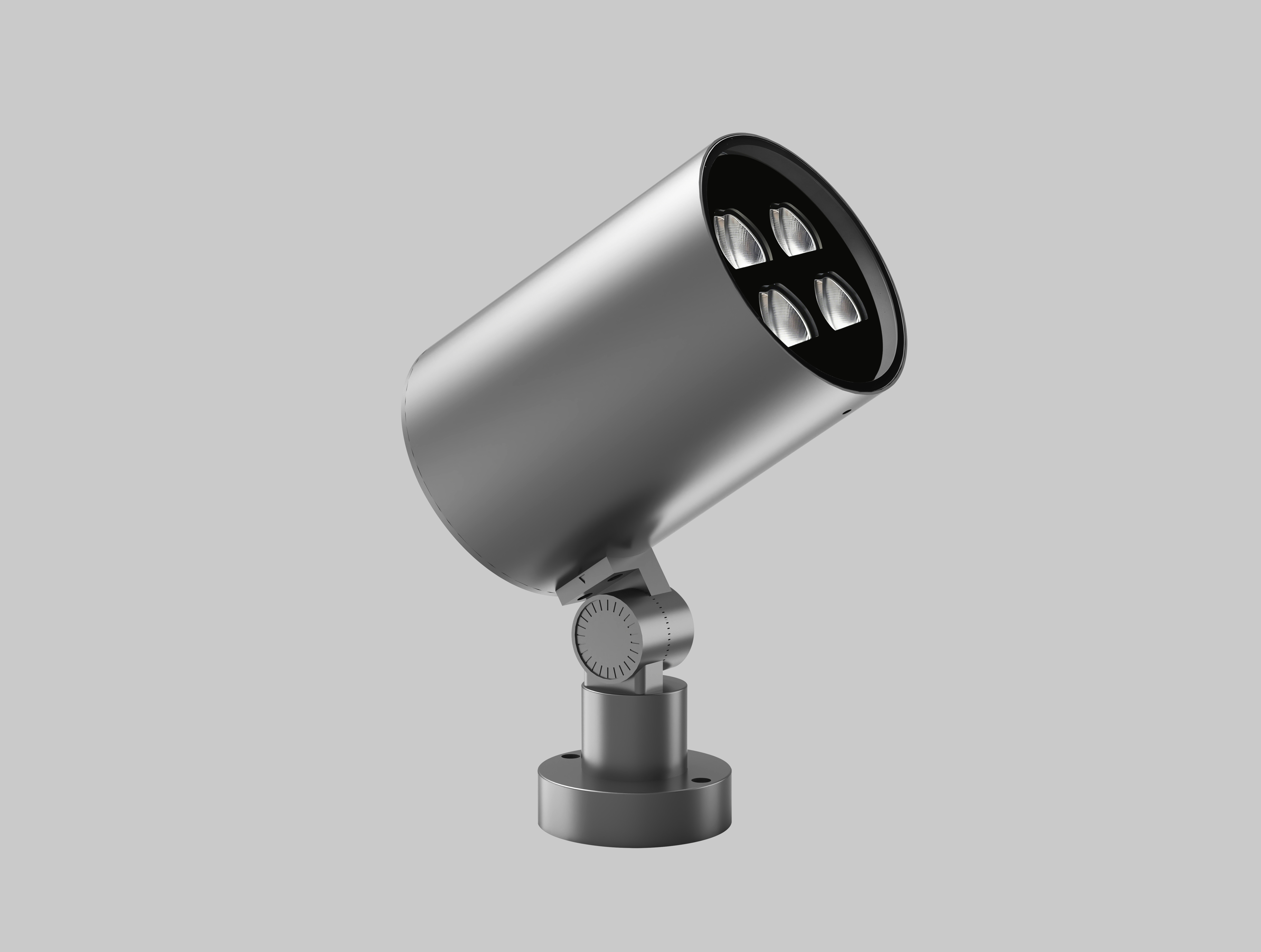

Luminaire body material: 6061 aluminum (processed by CNC technology) |
| ● |
U-shaped bracket material: Stainless steel |
| ● |
Base-mounted type material: Die-cast aluminum |
| ● |
All brackets are equipped with a graduated scale and a mechanical aiming lock |
| ● |
Anti-glare louvers are designed for different optics |
| ● |
Luminaire surface color: Matte gray |
Protection & Performance Ratings
| ● |
IP rating: IP65 |
| ● |
IK rating: IK07 |
| ● |
LED chip brands: Cree, Bridgelux, Luminus (selected based on the optical and chip requirements of different luminaires) |
| ● |
Standard color temperatures: 2700K, 3000K, 4000K, 6000K, RGBW |
| ● |
Color Rendering Index (CRI): ≥90 |
| ● |
MacAdam Step: ≤3 |
| ● |
Lifetime: 100,000h - L80 - B10 (at Ta = 40°C; i.e., 80% luminous flux retention with a 10% failure probability at an ambient temperature of 40°C) |
| ● |
Operating ambient temperature range: -20°C ~ 50°C |
Electrical & Control Specifications
| ● |
Operating voltage options: DC24V, AC220V |
| ● |
Power cable specifications: |
| ● |
AC220-240V: 3×1mm² |
| ● |
DC24V (＜50W): 2×0.75mm² |
| ● |
DC24V (＞50W): 2×1mm² |
| ● |
DC24V (1W): 2×0.5mm² |
| ● |
Luminaire control options: Built-in ON/OFF\ 0-10V, dimmable DMX512 driver |
| ● |
Output power cable length: The luminaire is equipped with a 300mm or 500mm long output power cable; specifications must be specified when placing an order |
Mounting Accessories
| ● |
U-bracket, Spike for ground, Arc-shaped plate, Hoop |
